Description
KEY FEATURES
- Protects rocker panels and doors
- Frame mounted design is far stronger than body mounted sliders and disperses impacts into the truck frame rather than the sheet metal
- Full length 3/16″ frame plate and FIVE leg design guarantee a slider as strong or stronger than anything on the market
- Our sliders utilize a 2″ square main rail which is far stronger than 1.75″ round tube used by competitors
- Our Bronco Rock Sliders come STANDARD with 1.75″ DOM outer rails for uncompromised strength
- Heavy duty 1/4″ thick gussets on all five legs
- Mitered, 3/16″ steel, laser cut and bent end caps are stronger, more functional, and look better than competitors square cut sliders. We take everything a step further
- Full length 3/16″ frame plate and FIVE leg design guarantee a slider as strong or stronger than anything on the market
- Easily capable of supporting the entire side of truck for lifting with hi-lift, or sliding on rocks
- Direct bolt on addition to existing mounting locations, no drilling required

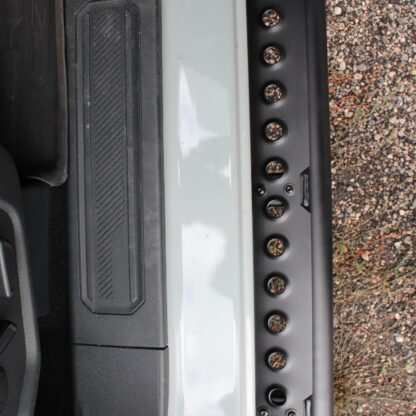

- Available bolt on tread plate for step surface provides many benefits
- Added safety for kids and pets getting in and out of the vehicle
- Added protection to rocker panels from rocks and debris thrown from tires
- Dimpled surface gives added grip and provides structural rigidity to the slider
- We recommend 5 Degree for this option, for flatter step surface
- 20 degree upward angle creates a low profile with maximum ground clearance
- Easy install with only basic hand tools
- Available with our heavy duty black textured powder coat finish, plus we take it a step further and coat all rock sliders with an epoxy primer for an exponentially more durable finish. We powder coat in-house allowing us to provide better quality, and shorter lead times for the same cost!
- All hardware provided (grade 5 & 8 hardware where applicable)
- Standard with RCI’s signature low profile rear kick-out
- Fits all 21-Present 4wd 4-door models
MADE IN USA
Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Comparison of standard Hot Roll Electric Welded (HREW) steel tubing vs. Drawn Over Mandrel (DOM) tubing.
| Tubing Type
HREW |
Yield Strength (PSI)
48,000* |
Ultimate Strength (PSI)
65,000* |
||
| DOM | 72,900 ** | 82,300 ** |
*Approximate mechanical specs for engineering design, may vary slightly depending manufacturer.
INSTALL GUIDE
RCI 2021+ FORD BRONCO ROCK SLIDER (4-DOOR) INSTALLATION GUIDE
Derek Gray (verified owner) –
Ordered, received, installed and tested my rock sliders. I could not be happier. From order to delivery was right around 10 days. They came with all the required hardware. I had to modify the installation for the passenger side due to the fuel tank placement. To do it how RCI stated in the instructions was impossible without dropping the fuel tank. I was not willing to do that. But I got some massively heavy duty washers and replaced their bolt with one 1/2” shorter and went the opposite direction and it worked perfectly. Otherwise, installation was really simple.
Immediately after install I hit the trails. I intentionally took the opportunity to place the full weight of the vehicle on the sliders and use them as a pivot point on several large rocks. They worked exactly as designed.
Overall, I cannot recommend these sliders enough. I cannot wait until I am able to purchase more armor products for my Bronco from RCI in the future.
Rob (verified owner) –
Got my 20 degree sliders installed and they look fantastic! I know they are solid, all the RCI products I got for my F-150 several years ago performed up to my expectations, and took a lot of abuse!
Nels Larson –
Rock solid, high quality, well built sliders. Built in Colorado. 100% Recommend.
Jonathan Cooper (verified owner) –
The sliders are very well built and solid.
Installation is straight forward and customer service is top notch.
