Description

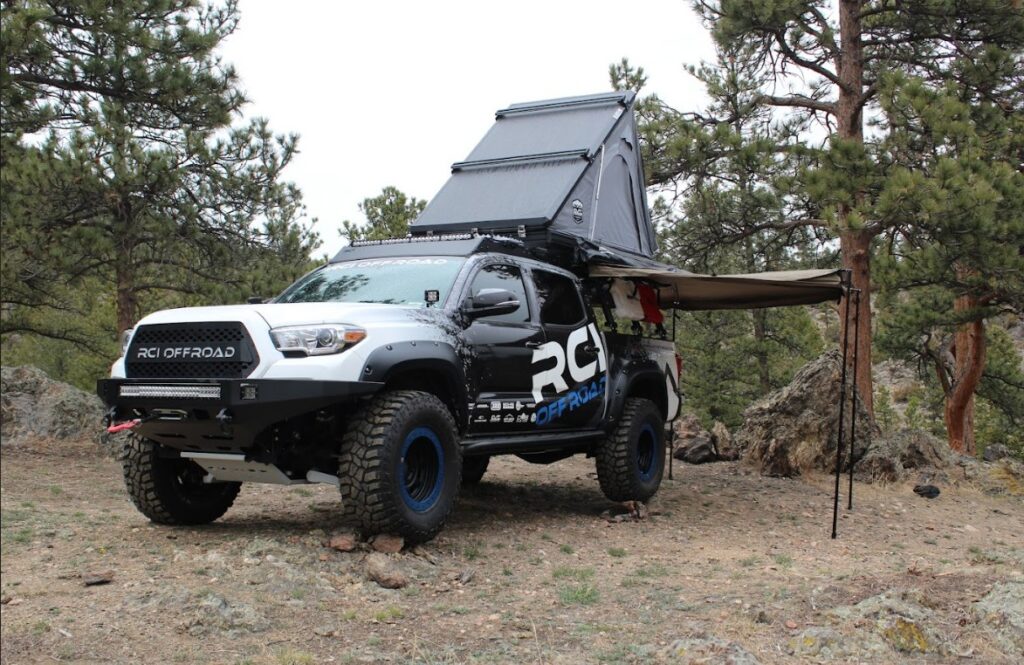

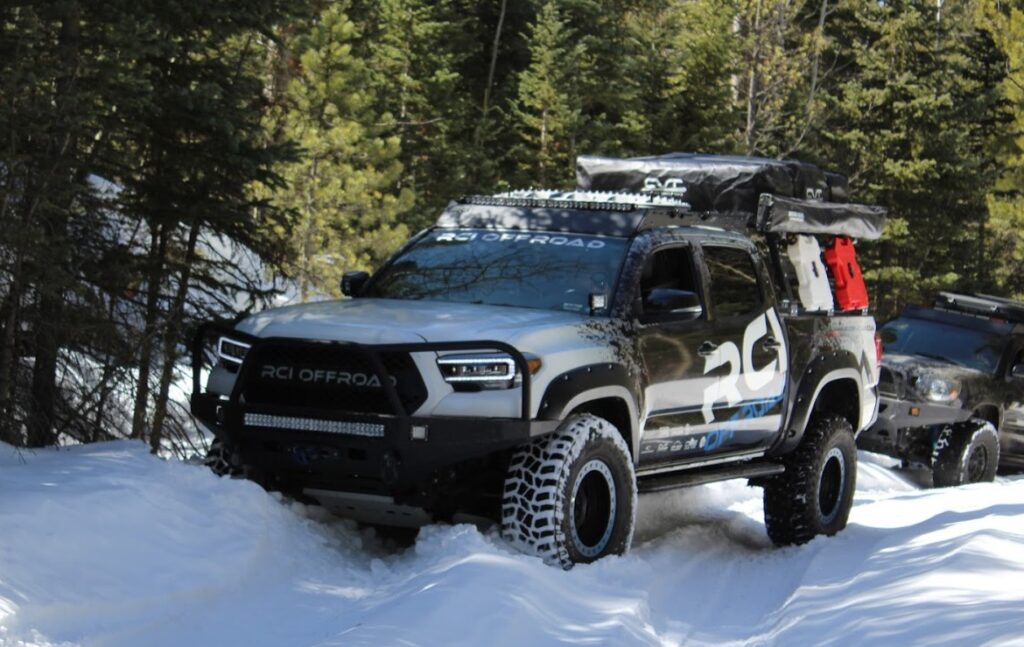

The Ultimate Rock Crawler & Heavy-Duty Off-Road Package is engineered for the all-in, no-compromise armor setup for 3rd gen Tacoma owners who treat trails like battlegrounds. Built for those who crawl harder, wheel deeper, and demand gear that won’t flinch—this package is your ticket to elevate your offroad adventure with confidence and grit.
The Ultimate Rock Crawler & Heavy-Duty Off-Road Package Package combines our industry-leading full width Arapahoe front bumper, direct bolt on steel rear bumper , fully bolt on DOM steel rocksliders, Full skid plate package, fuel tank skidplate , a-arm skidplates, rear differential skidplate and more creating a comprehensive protection system available for your 3rd generation Tacoma. Built with premium CNC laser-cut materials, this package ensures maximum strength, fit, and durability while maintaining a sleek and functional design. All components are designed for easy installation with no drilling required, using factory attachment points for a perfect fit.
Rock Crawler & Heavy-Duty Off-Road Package:
- Arapaho Bumper: Maintains the aggressive styling of the 3rd generation Tacoma while providing recovery points, winch mounting, and light bar attachment points.
- Rear Bumper: Maintains the aggressive styling of the 3rd generation Tacoma while providing more ground clearance than the factory bumper, added recovery points, cut outs for auxiliary back up lighting, includes built in receiver
- Rocksliders: Utilize a full frame support mounting plate which serves both to protect your Toyota Tacoma from damage, as well as provides an extremely rigid attachment for the sliders by using multiple bolt locations all across the frame. These will help protect your Tacoma both off-road as well as in the parking lot, and are still very functional as a step if needed.
- Engine Skid Plate: Protects front two cross-members, low hanging front differential, and oil pan; Service openings for easy service and oil changes without removal

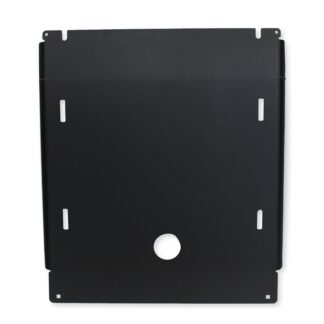

- Transmission Skid Plate: Protects transmission, second and third cross-members

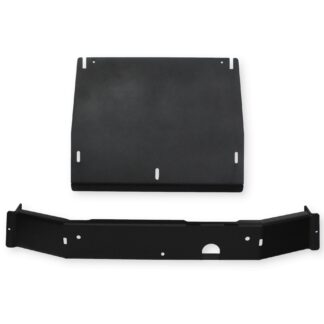

- Transfer-case Skid Plate: Protects third cross-member, transfer-case, and exhaust pipe
- Fuel Tank Skid Plate: Provides robust protection for the fuel tank from punctures and impacts
- A-arm Skid Plate: Protects the lower control arms and alignment cam bolts
- Rear Shock mount Skid Plate: Protect the low hanging rear shock absorber mounts
- Bumper Reinforcement brackets: Provide reinforcement to the thin frame section that the RCI front bumper attaches to. Ideal for repeated heavy winch pulls
- Winch Control Box relocation bracket: Necessary to relocate the winch’s control box to fit in the front bumper

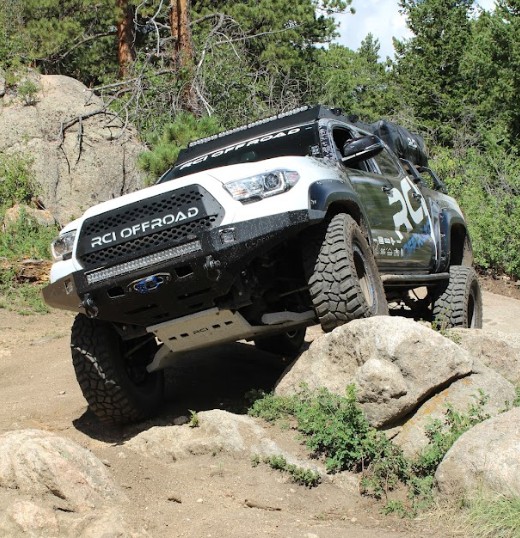

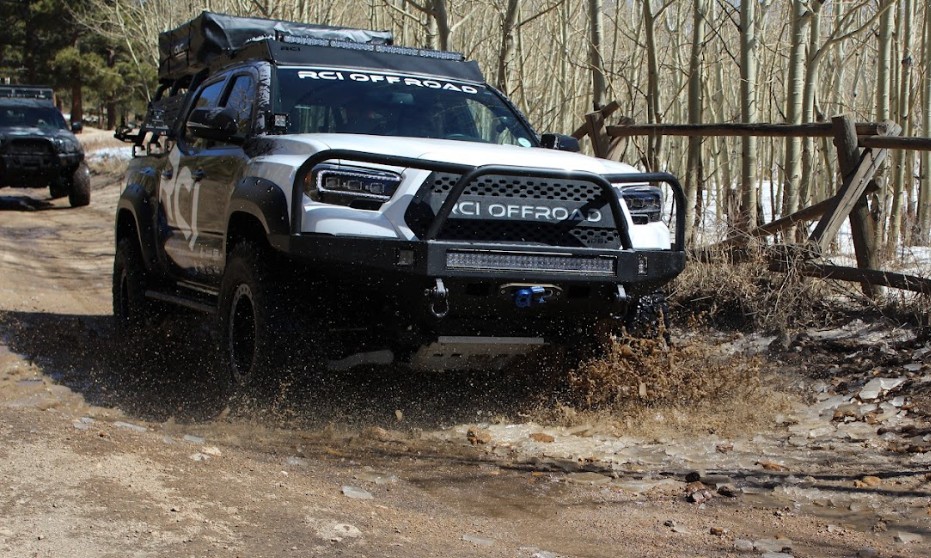

Arapaho series Front Bumper
- Precision-fit front bumper insert for added front-end protection.
- Includes recovery points and a sleek design that enhances the Tacoma’s rugged look.
- Capable of equipping with up to a 10,000lb winch.
- Factory like powder coating available with epoxy primer and uv resistant black finish
- Material: 3/16″ Plate & .120 DOM Tube
- Weight: 122lbs W/Hoop, 112lbs No Hoop

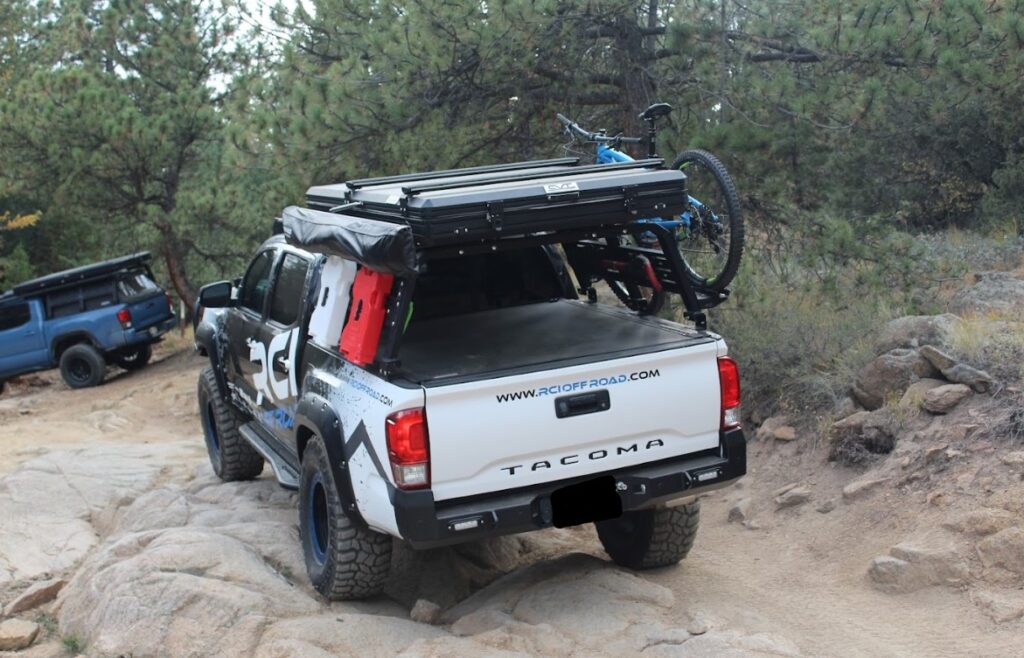

Rear Bumper
- Seamlessly matches the contours of the truck for a perfect fit and finish
- Improves ground clearance by over 4″ by incorporating our built in hitch receiver into the bumper, making for a dramatic improvement in departure angle
- 1/4″ heavy duty frame mounts and receiver structure
- 1/2″ shackle mounts run through bumper shell and are welded directly to frame plates
- Allows the use of most factory electronics including trailer plug, backup sensors and license plate lights, does not work with BSM
- Includes built-in receiver
- While not rated for towing, our bumper has been tested to tow comparably to the OEM capacities
- Includes built in holes for installing Rigid SRQ backup lights. Covers for light cutouts are included
- Weighs only 20lbs more than the OEM bumper with hitch
- Direct bolt on addition to existing factory attachment points, no drilling required
- Heavy duty satin black textured powder coat finish for great looks and a durable finish
- Weight: 85lbs.

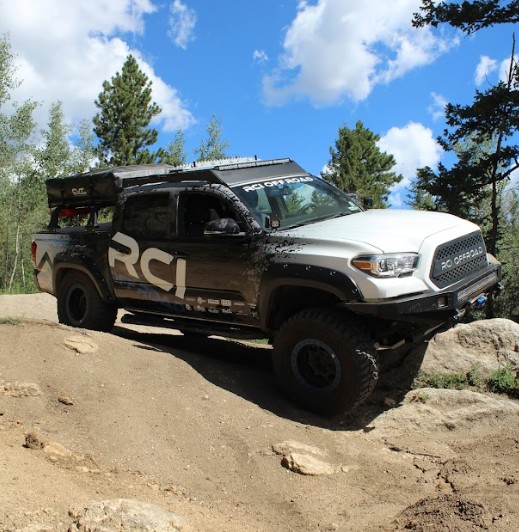

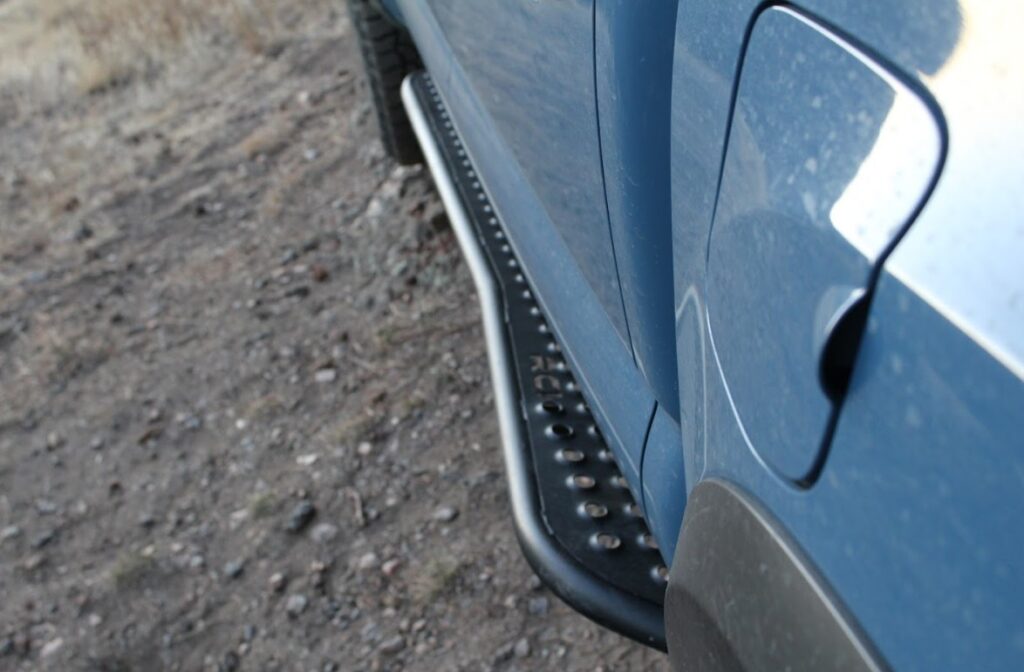

Rock Sliders
- Fits all 2016-2023 4wd access cab with 6′ bed and double cab with 5′ bed trucks
- Protects rocker panels and doors
- Our sliders utilize a 2″ square main tube which is far stronger than 1.75″ round tube used by competitors
- Sliders come STANDARD with 1.75″ DOM outer rails for uncompromised strength
- Heavy duty 1/4″ thick gussets on all four legs
- Mitered, 3/16″ steel, laser cut and bent end caps are stronger, more functional, and look better than competitors square cut sliders. We take everything a step further
- Full length 3/16″ frame plate and FOUR leg design guarantee a slider as strong or stronger than anything on the market
- Easily capable of supporting the entire side of truck for lifting with hi-lift, or sliding on rocks
- Standard 20 degree upward angle creates a low profile with maximum ground clearance
- Direct bolt on addition to existing mounting locations, no drilling required
- Available tread plate for step surface provides many benefits
- Added safety for kids and pets getting in and out of the vehicle
- Added protection to rocker panels from rocks and debris thrown from tires
- Dimpled surface gives added grip and provides structural rigidity to the slider
- We recommend 5 Degree for this option, for flatter step surface
- Easy install with only basic hand tools
- Available with our heavy duty black textured powder coat finish, plus we take it a step further and coat all rock sliders with an epoxy primer for an exponentially more durable finish than competitors. We now powder coat in-house allowing us to provide better quality, and shorter lead times for the same cost!
- All hardware provided (grade 5 & 8 hardware where applicable)
- Standard with RCI’s signature low profile rear kick-out
- Optional 5 Degree low angle option for maximizing functionality as a side step, but still retains all the benefits of a true rock slider.

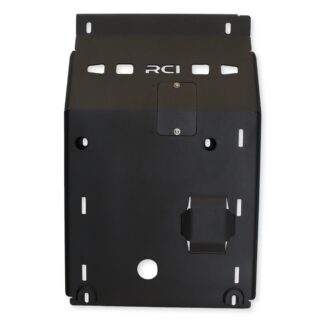

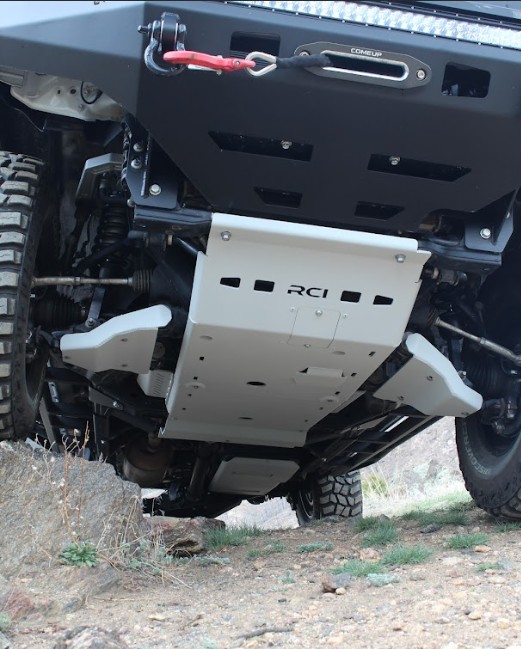

Skidplate Package – Engine, transmission, transfer case
- All skid plates have the following features:
- Smooth, flat surfaces for obstacle clearance and easy sliding.
- Oil filter and oil drain access holes, reinforced edges providing structural strength, bolt protector rings to protect hardware and a center differential drop cage providing maximum ground clearance for the vehicle and the need for no extra hardware.
- Steel plates are epoxy powder-coated black for rust resistance.
- Built from CNC cut 3/16” steel or 1/4” aluminum with a durable black powder-coated finish.
- Heavy-duty design with a focus on durability and ease of installation.
- Reinforced construction for extended durability.
- Engineered for strength and precision streamlined fit.
- Weight: 120lbs Steel, 68lbs Aluminum
Fuel Tank
- Weight: 35lbs Steel, 15lbs Aluminum
**FUEL TANK SKIDPLATE REQUIRES FUEL TANK STRAPS IF VEHICLE IS NOT A TRD OFFROAD OR TRD PRO** – LINK TO STRAPS HERE

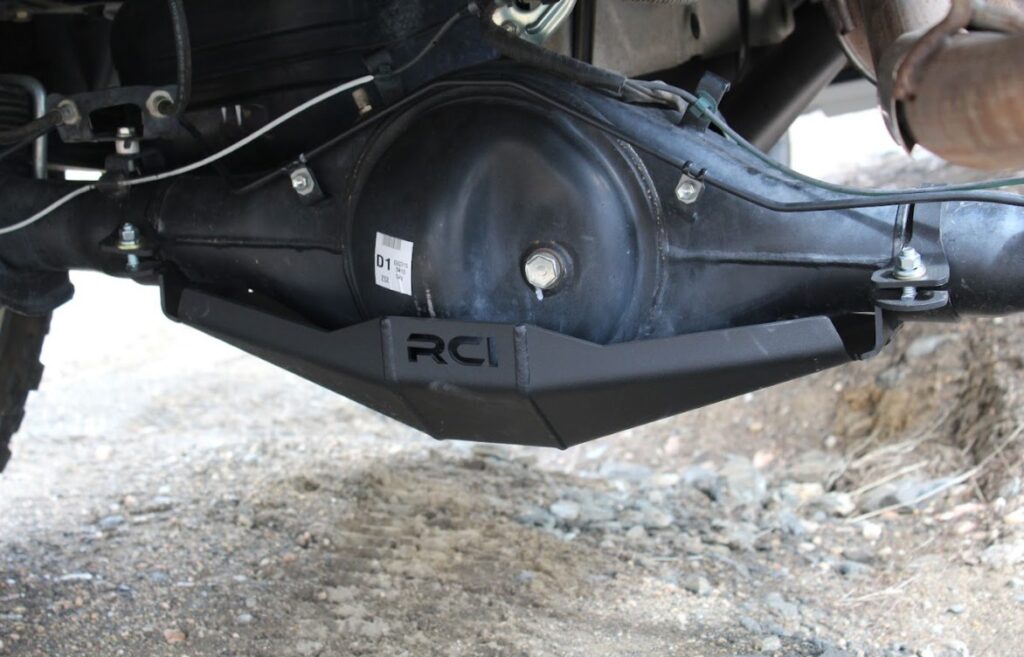

Rear Differential Skid Plate
- Protects the low hanging rear differential
- Clamps directly to axle housing for an easy no drill install
- Hugs differential tightly, within 1/4″ for minimal loss in ground clearance.
- Black powder coated for rust resistant, durable and high quality finish
- Design incorporates drain holes for water and dirt to escape, as well as allow full access to the differential drain plug
- Installs in minutes
- All hardware and installation instructions provided
- Direct bolt on addition to existing factory attachment points, no drilling required
- Weight:22 lbs
A-arm Skid Plates
- Protects A-arms
- Smooth, flat surface that easily slides over obstacles
- Black powder coat available for rust resistant, durable and high quality finish
- Installs in minutes
- All necessary hardware for installation provided
- Direct bolt on addition to existing factory attachment points, no drilling required
- New design features rear flange for improved strength and rear protection
- Weight: 18lbs Steel, 9lbs Aluminum
Rear Shock Mount Skid Plates
- Includes one pair of shock mount skid plates (Driver/Passenger)
- Protects low hanging shock mounts on all 2005 to 2023 Tacoma models
- Includes all hardware for installation
- Product includes a heavy duty black powdercoat finish
- Fits OEM, Icon, Fox, King, Eibach, Bilstein and many others
- Weight: 5lbs.
*May not be compatible with ALL suspension brands. If you have a particular rear suspension setup please call to confirm fitment
Front bumper Reinforcement brackets
- Adds strength to a known week point of the Tacoma frame
- Compatible with RCI front bumpers
- Ideal for trucks that frequently perform repeated heavy winch pulls
- Installs in minutes
- Powder coated with a two stage primer and textured black powder coat for an extremely durable, high quality finish
- All hardware and installation instructions provided
- Weight: 6lbs
Winch Control Box Relocation Bracket
- Allows for the winch control box to be relocated to provide more room for a winch
- Pairs perfectly with our 2016-2023 Tacoma Pike and Arapaho Bumpers
- Secure mounting with multiple mount locations
- Fitment verified on SuperWinch, Warn ZEON and Warn EVO control boxes
- No drilling required for installation
- Powder coated with a textured black powder coat for an extremely durable, high quality finish
- All hardware and installation instructions provided
- Weight: 2lbs
With the RCI Offroad Ultimate Rock Crawler & Heavy-Duty Off-Road Package, your Tacoma will be ready to conquer any terrain with unmatched confidence and durability. Protect your investment and enjoy the freedom to go wherever adventure calls.
